2000 Bar High Pressure Hydraulic Pneumatic Pump

Name: 2000 Bar High Pressure Hydraulic Pneumatic Pump
Brand: AI LE SEN
Price: 1 USD

Quality 2000 Bar High Pressure Hydraulic Pneumatic Pump wholesale

Brand Name : AI LE SEN

Model Number : AHP2500

Certification : ISO9001

Place of Origin : China

MOQ : 1Set

Price : Negotiable

Payment Terms : D/P, T/T

Supply Ability : 500 units per month

Delivery Time : Stock spot

Packaging Details : Wooden box by air

Name : High Pressure Pump Unit

Pressure : 2000bar

Air pressure : 8Bar

Compression ratio : 1:282

Materials : Various alloy steel and aluminum

Use the medium : oil or Water

Whether to accept customization : Yes

Can be powered by hand : NO

Multipurpose (incl fuel injector tests) : NO

Whether to accept custom : Yes

Color : Random colors are not assignable

Contact Now

AHP 3500 W HYDRAULIC POWER UNITS Providing Up To 3300 Bar Hydraulic Pressure

principle

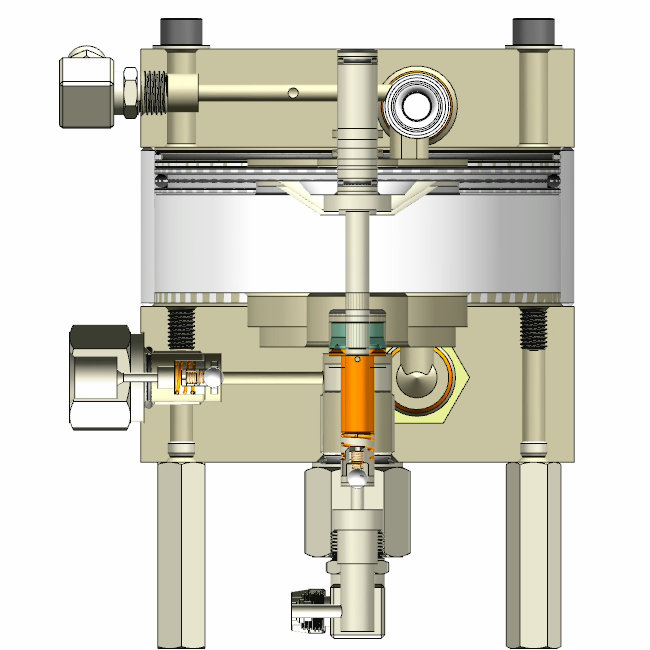

The pneumatic hydraulic pump converts the lower air pressure into high pressure oil, that is, using the low air pressure at the piston end with a large area to generate high hydraulic pressure at the piston end with a small area

Teature

Type	AHP2500
Air Side Material:	Anodized Aluminum
Hydraulic pressure (bar) output@input	2000@8
Area Ratio	1:282
Maximum displacement	About. 0.45 l/min 8.0 bar air input
weight(Kg)	8.5
Pressure oil outlet:	Customized on demand
Operating Temperature Range	0° to 140°F (-18° to 60°C)

2000 Bar High Pressure Hydraulic Pneumatic Pump

Product Tags:

AILESEN 2000 bar Hydraulic Pneumatic Pump

AILESEN Hydraulic Pneumatic Pump ISO9001

AILESEN alloy steel High Pressure Pump Unit

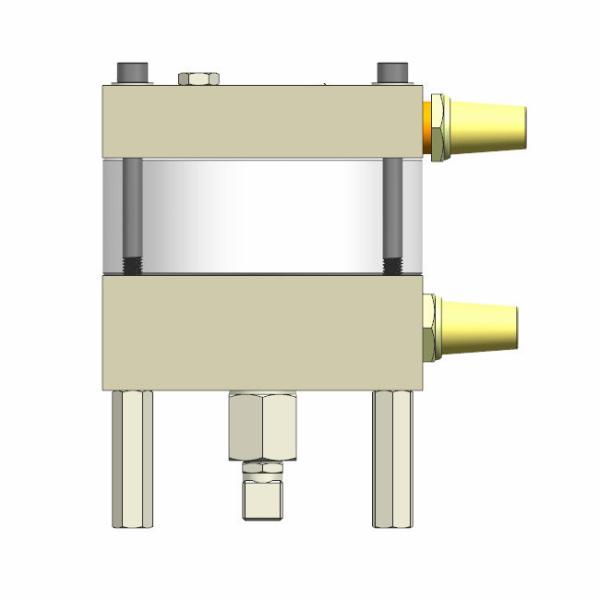

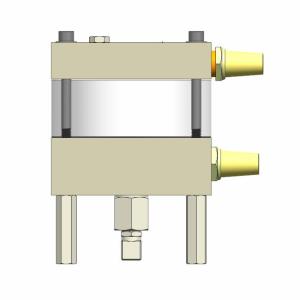

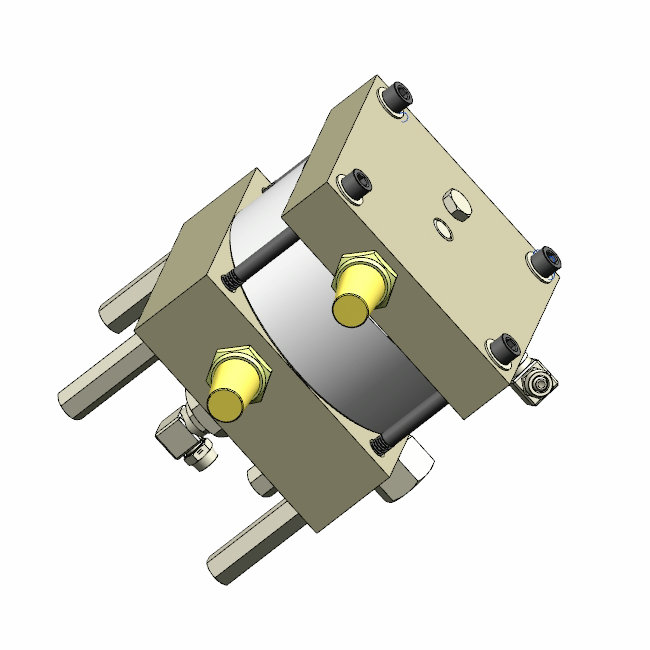

2000 Bar High Pressure Hydraulic Pneumatic Pump Images
