The Marine Fuel Valve Test Device HDFD-1100 Adopts Digital Display To Be More Accurate
Product Brief
use:The pump unit, mainly used to measure its spray condition, is an essential test tool for high-power diesel engines.
Advantage:
1. It has the advantages of big power
2. Wide scope of application: coversLow Speed Diesel Engine.B＆W35-98
3. Use digital acquisition system to be more accurate
4. Stainless steel shockproof pressure gauge
Technical parameter
| Output pressure | Max.80MPa at 0.8MPa air input |
| Air consumption | 13 Liters/cycle at 0.7MPa air input |
| Max. flow of fuel oil | 40ML/cycle at an air input of 0.4Mpa |
| Pumping speed | 30cycle/Min at 0.4MPa air input (no output pressure) |
| Tank capacity | 8L |
| Dimension | 700x450x1120mm |
| Weight | 76kg |
| VOLTAGE SUPPLY | 115~230VAC |
Random configuration list
| Name | Quantity |
| Spare parts for fuel valve clamping | 1 Set |
| Repair kits | 1 Set |
Purchase Notes:Please inform us the main diesel engine model, such as 7G80MEB
Means of transaction:Pay first and ship(FOB)
If you need to buy a fuel valve test device, please contact us directly, because we are a professional manufacturer. No matter whether the price or technology will benefit you the most .
SPECIFICATION:
The HDFD-1100 he main feature is that the new pump is electronically controlled.
The pump unit is equipment with a digital display. It shows the working pressure, opening pressure and closing pressure with an accuracy of +/- 1bar.
Notice:The atomizing test cannot be executed.
Pneumatic hydraulic test pump
Pneumatic hydraulic test pump
Featuring
One unit test all fuel-injection valves aboard.
Backward valve compatibility
Separate display for data collection (opening/venting pressure)
Precise digital read-out (± 1bar)
Automatic Slide Fuel Valve protection system
Product Tags:
|
|

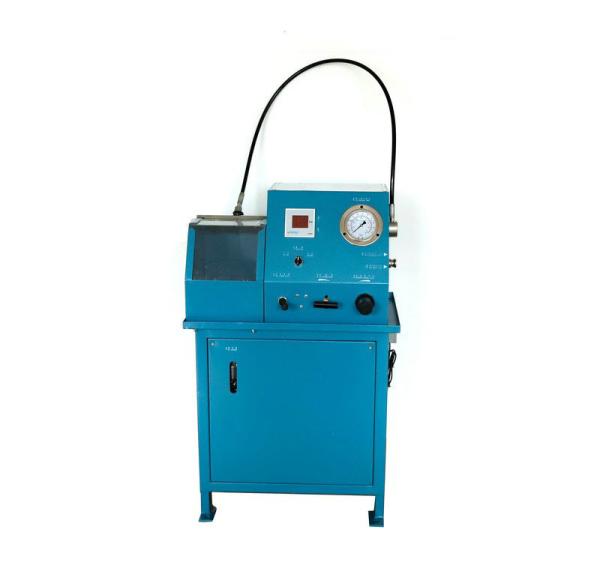

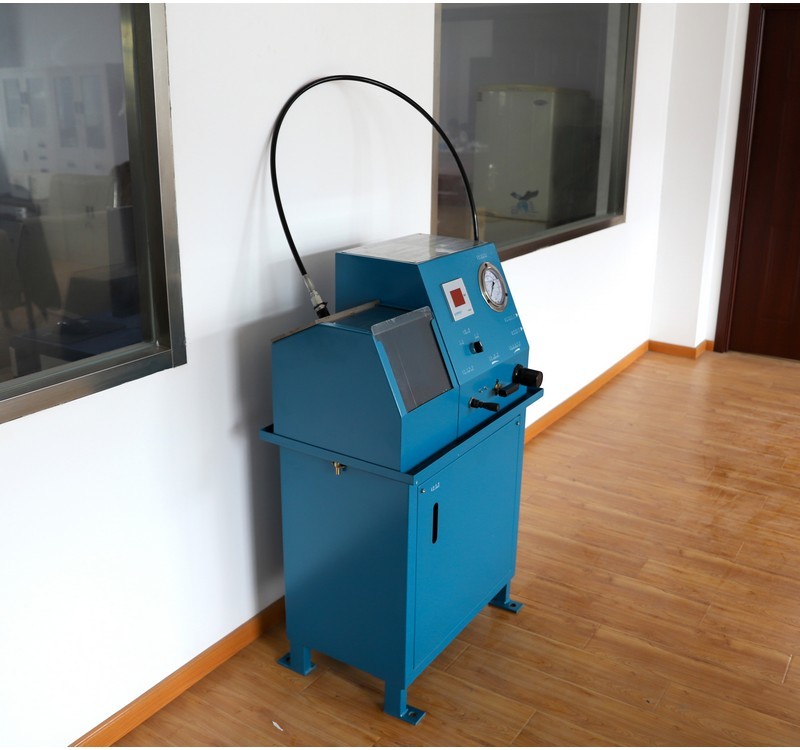

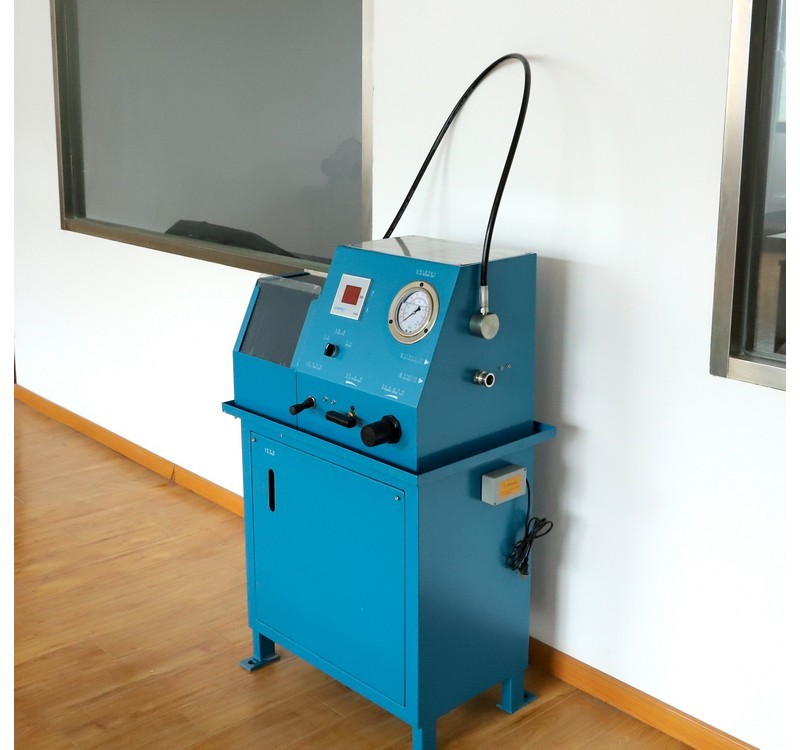

76Kg Marine Fuel Valve Test Device Images
|
